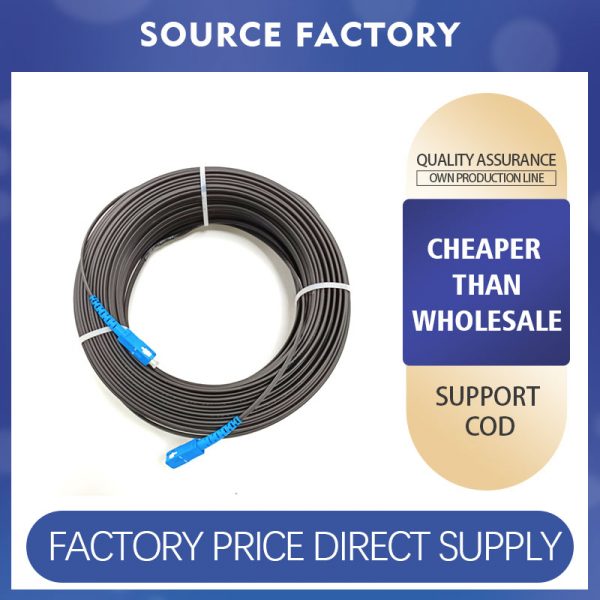

FTTH drop fiber cable

分类:

Designed for FTTH applications
Small and light, with good flexibility, suitable for user terminal access, convenient for indoor wiring and corridor deployment.

High-quality optical fiber, stable transmission
Use low-loss G.657A or G.652D optical fiber to meet various bandwidth requirements such as high-speed data and high-definition video.

Compression and tension resistance, long service life
Use metal or non-metal reinforcement to enhance tensile performance, and the outer sheath has good moisture and UV resistance.

Support multiple installation methods
It can be installed by nailing to the wall, wiring trough, pipe penetration, overhead, etc., with strong adaptability and convenient and fast construction.

Beautiful and practical, suitable for indoor wiring
The butterfly-shaped flat structure does not affect the beauty of the home, and is widely used in FTTH construction scenarios such as homes, communities, office buildings, and hotels.

📦 Typical applications:
Fiber to the home (FTTH) projects

Indoor/corridor/wall wiring

User terminal connection

Data network access project

🛠 Technical parameters (example):
Project Parameter range
Fiber type G.657A / G.652D
Core range 1~4 cores (commonly 1 core or 2 cores)
Reinforcement Steel wire / FRP / KFRP
Outer sheath material LSZH / PVC / PE
Sheath color Black / White (customizable)
Using temperature range -40℃ ~ +70℃
Minimum bending radius Static 10D / Dynamic 20D

📞 Optional services:
Customizable core number, sheath color and length

OEM labeling service and technical support

Bulk fast delivery, support overseas export
