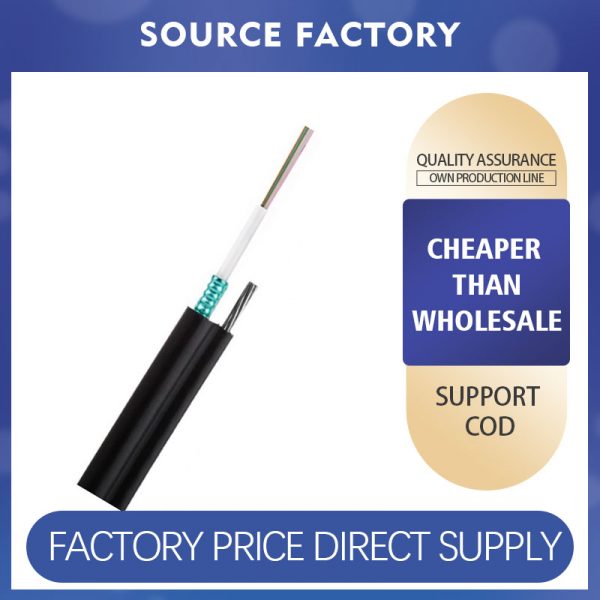

Figure 8 Messenger cable

Stable structure and strong tensile strength
The integrated steel wire bearing core and the optical cable part adopt an integrated molding design to effectively enhance the tensile strength, which is suitable for overhead installation of poles.

Easy installation and low construction cost
The process of pulling the suspension wire separately is eliminated, which improves the construction efficiency and is particularly suitable for overhead line communication deployment in towns and rural areas.

Excellent weather resistance
It has good UV resistance and aging resistance, and can adapt to various outdoor complex environments such as high temperature, low temperature, and humidity.

High-quality optical fiber core
Adopt G.652D or G.657A optical fiber, low loss, high bandwidth, to ensure stable and high-speed data transmission.

Multiple models are available, support customization
You can choose 2 cores, 4 cores, 6 cores, 8 cores and other cores according to customer needs, and support customization of PE and LSZH sheath materials.

📦 Typical applications:
Overhead communication lines
Fiber-to-the-home (FTTH) projects
Rural/urban-rural information transformation projects
Railway and highway communication systems

🛠 Technical parameters (optional):
Project Parameter range
Fiber type G.652D / G.657A
Core number range 2~24 cores (customization supported)
Sheath material PE / LSZH
Tensile strength ≥ 1000N (depending on structure and steel wire specifications)
Minimum bending radius Static 10D / Dynamic 20D
Using temperature range -40℃ ~ +70℃
