The Solid Foundation of Optical Communication: Unveiling the Entire Manufacturing Process of Fiber Optic Cables and Jumpers

How can the source factory create high-performance and high stability optical communication products

In modern communication, data centers, FTTH, 5G networks, industrial intelligence and other application scenarios, optical communication products are playing an increasingly important role. As the most critical “connecting bridge” in optical communication systems, the manufacturing quality of fiber optic cables and jumpers directly determines the efficiency, stability, and lifespan of signal transmission.

We are a professional manufacturer of fiber optic cables and jumpers, with rich manufacturing experience, advanced production equipment, and strict quality control system. From fiber material selection, to end face grinding, plug assembly, and full inspection packaging, we always adhere to the principle of “using details to create quality, and using craftsmanship to build a brand”.

This article will take you to a deeper understanding of how a high-quality optical cable and fiber patch cord are gradually manufactured from raw materials, revealing the technical processes and quality management system behind them.

1、 Starting from raw materials: the foundation of high-quality optical communication products
High quality raw materials are the fundamental prerequisite for producing high-performance optical cables and fiber jumpers.

1. Fiber optic core material:
   We use internationally standard quartz fiber cores (G652D, G657A1/A2, OM3/OM4, etc.), which have the characteristics of low attenuation rate, high tensile strength, and good bending performance, ensuring high-speed and stable optical transmission.
2. Coating material:
   The optical cable sheath is made of low smoke halogen-free (LSZH), PVC, PE and other materials, which are wear-resistant, fireproof and corrosion-resistant;

The jumper sheath comes in various colors (such as yellow single-mode, orange/navy blue multi-mode) and complies with TIA/EIA standards.

3. Connector components:
   All fiber optic jumper connectors use standard grade ceramic inserts (zirconia ferro) and introduce high-precision grinding technology to ensure end surface smoothness and flatness, with lower insertion loss and higher return loss.

2、 Fiber optic cable manufacturing process: rigorous, systematic, and efficient

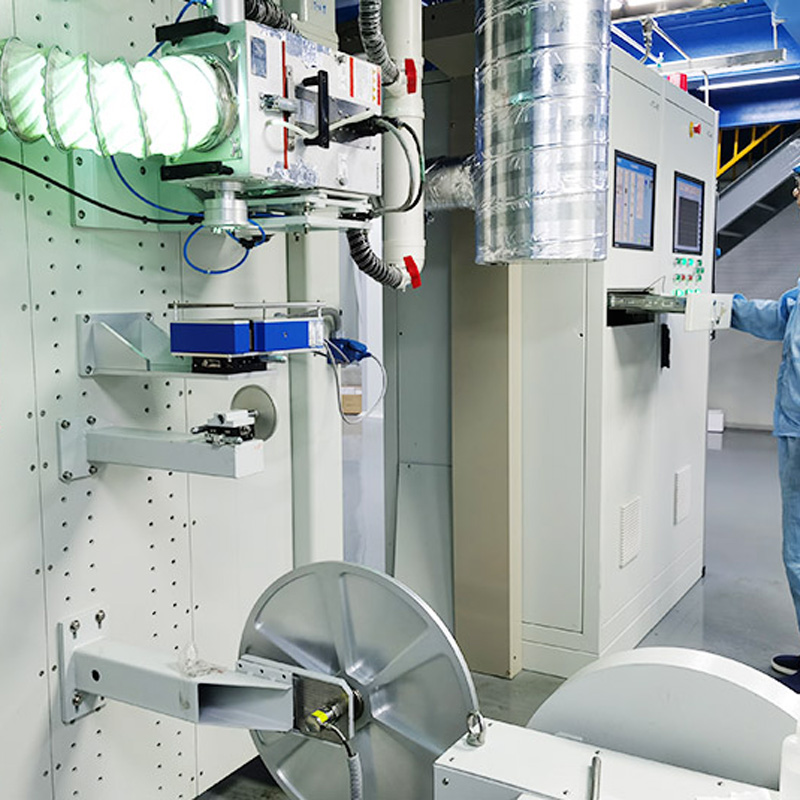

We have a complete production line for optical cable lines, covering various products such as indoor optical cables, butterfly introduction optical cables, armored optical cables, FTTH optical cables, etc., which are widely used in operators, engineering projects, and overseas markets.

1. Fiber optic pre-processing
   Perform tension pre tension testing on the original fiber optic disc to check its strength and coating integrity;

Clean and remove dust to ensure that the core wire is free of impurities.

2. Tightly/loosely fit into a cable
   Choose tight or loose sleeve structure according to the purpose;

Accurately control the arrangement of core wires and twisting tension to avoid micro bending losses.

3. Strengthen components and filling
   Outdoor optical cables are reinforced with aramid yarn (Kevlar), glass fiber rods, steel wires, and other reinforcing cores to enhance their tensile and compressive strength;

Waterproof optical cable filled with waterproof paste or waterproof tape to ensure long-term stable operation.

4. Extruded sheath
   Use high-speed extrusion equipment to wrap the outer sheath;

Monitor the thickness, outer diameter consistency, and surface smoothness of the protective sheath;

Supports dual sheath, colored sheath, and multi-core design.

5. Cable inspection and coiling
   Test the attenuation value of each core using an Optical Time Domain Reflectometer (OTDR);

Each fiber optic cable is recorded with a number, length, and test result.

3、 Fiber Optic Jumper Manufacturing Process: The Art of Precise Connection
Our factory has multiple automated and semi automated production lines for fiber optic jumpers, which can mass produce single-mode and multi-mode jumpers with various interface types such as LC/SC/FC/ST/MU/E2000.

1. Cutting and peeling
   Accurately cut according to customer customized length;

Using an automatic stripping machine to remove the sheath and buffer layer, ensuring that the bare fiber core is not damaged.

2. Connector assembly
   Assemble connectors in a constant temperature and dust-proof environment;

Use imported glue for bonding and curing to ensure stable fixation of the plug.

3. End face grinding and polishing
   Use imported end face grinding equipment for UPC or APC grinding;

Check the end face for scratches, bubbles, and misalignment to ensure that the insertion loss is controlled within the industry-leading range (generally ≤ 0.2dB).

4. Performance testing
   Each jumper undergoes insertion loss testing, return loss testing, and 3D interferometer end face inspection;

Only qualified products can be labeled and packaged.

5. Finished product packaging
   According to customer requirements, perform plastic sealing, single strip packaging, label printing, and scan code for storage;

Support customized LOGO, laser engraving, and engineering coding management.

4、 Quality control system: Every process is not relaxed
We are well aware that the quality requirements for fiber optic connection products are almost stringent. Therefore, a comprehensive full process quality control system has been established:

Reference for frequency standard of detection content in the detection process
Material incoming testing of fiber core parameters and sheath flame retardancy per batch IEC, RoHS
Process inspection attenuation value, sheath thickness, insertion loss value, ISO9001 system standard for each process
Finished product full inspection for insertion loss, return loss, and end face cleanliness 100% full inspection GR-326, YD/T standard
Sampling/fatigue testing, insertion and extraction life, bending performance testing, weekly sampling, customer customized standards

5、 Support customization: Diversified to meet different customer needs
In order to meet the different application scenarios and standards of global customers, we support:

✅ OEM/ODM services
✅ Customized jumper length, color, and sheath material
✅ Customization of special connectors (such as MPO/MTP, ODC)
✅ English packaging, laser marking, logo label customization
✅ Provide third-party testing reports (such as CE, RoHS, ISO, REACH)

6、 Going Global: Growing Together with Our Customers
Our products have been exported to over 50 countries and regions worldwide, and are widely used in:

Telecommunications operators (FTTH/FTTB network construction)

Data Center (Fiber Optic Jumper/ODF Distribution Frame)

Engineering companies/system integrators

security monitoring system

Network construction of enterprises and institutions such as education, healthcare, and government

We are well aware that customers not only care about price, but also about quality, delivery time, service, and long-term cooperation value. We manufacture products with the spirit of craftsmanship and earn trust with professional services.
